OIL FOR MICRO-LUBRICATION AND LUBRICATION

FOR ALL DEFORMATION

OR CUTTING REMOVAL OPERATIONS

ON ALUMINIUM ALLOYS, INCLUDING WITH SILICON

GUARANTEED CHLORINE-FREE AND SULPHUR-FREE

EXTREME PRESSURE, ANTI-WEAR, NON STAINING

ADDITIVE FOR FORMULATORS OR USERS OF EVANESCENTS LUBRICANTS

iBiotec® MICROCHEM® 35



FIELDS AND MODES OF APPLICATION



MACHINING

 DEFORMATION

Cross cutting

Sawing (ribbon or circular saws)

Drilling

Threading

Turning

Milling

Stamping

Roll bending

Stamping

Plunging

Profiling

Thread forming

Spinning

Cutting

Punching





Use undiluted by classic spraying, sprinkling, in tubs with squeeze rollers, with a cloth, with felt, with low-pressure sprayers, or micro-lubrication.

ADDITIVATION:

From 10% to 20% in traditional cutting oils.

From 2% to 15% in dearomatised hydrocarbon solvents, for the creation of evanescent lubricant fluids. MICROCHEM 35 is guaranteed VOC-free.



ALUMINIUM ALLOYS

Series 1000 to 8000

Series 100.0 to 900.0

COPPER ALLOYS

MAGNESIUM ALLOYS



                             Download the data sheet



PHYSICO-CHEMICAL PROPERTIES TYPICALS

PHYSICAL PROPERTIES OF THE LUBRICATING OIL

PROPERTIE

STANDARD or METHOD

VALUE

UNITS

Appearance

visual

Fluid

nm

Colour

Visual

Amber

nm

Scent

Olfactory

Without

nm

Density at 20°C

NF EN ISO 12.185

850

g/l

Nature of solid lubricants

-

Without

-

Nature of base oil

-

Polymer

-

Kinematic Viscosity

Base oil at 40°C

Base oil at 100°C

NF EN ISO 3,104



30

28



mm2/s-1

mm2/s-1

Sulphated ash

NF T 60.144

0

%

Acid index (ai)

EN 14,104

< 0.1

mg(KOH)/g

Closed-cup flash point

NF EN 22.719

> 250

°C

Self-combustion point

ASTM E 659

> 300

°C

Freezing point

ISO 3016

-28

°C

Impurities

> 25 µ

> 75 µ

> 125 µ

FTMS 791 3005



0

0

 0



number/ml

number/ml

number/ml

PERFORMANCE PROPERTIE

PROPERTIE

STANDARD or METHOD

VALUE

UNITS

Copper blade corrosion 24h 100°C

ISO 2160

1a

value

Loss by evaporation 22h at 121°C

ASTM D 972

0.1

% mass

SHELL 4-ball test

Impression diameter

Weld load index



 ISO 20.623 – ASTM D 2266



0.56

3,500



mm

daN

SRV test

ASTM D 5707

0.18

coefficient

Elastomer swelling test

(dimensional change)

FTM 791

0.5

%

Water wash-off resistance at 80°C

ASTM 1264

0.2

%

Cold starting torque at -20°C

ASTM D 1478-63

10

N.cm

nm: not measured or cannot be measured



PRESENTATIONS

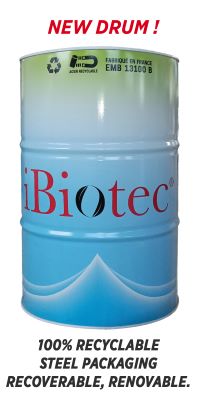

     Drum 200 L



Fluid for machining of aluminium alloys, micro-lubrication, extreme pressure, guaranteed chlorine-free and sulphur-free anti-wear non-staining, aluminium machining, aluminium sawing, micro-lubrication, aluminium cutting oil, aluminium boring oil, aluminium tapping oil, forming evanescent additive, evaporable lubricant additive, cutting oil manufacturers, cutting oil suppliers. Manufacturers of machining fluids. Suppliers of machining fluids. Manufacturers of industrial lubricants, suppliers of industrial lubricants, suppliers of cutting fluids. Aluminium cutting fluid. Lubricant for micro-lubrication.





 Can 20 L



Fluid for machining of aluminium alloys, micro-lubrication, extreme pressure, guaranteed chlorine-free and sulphur-free anti-wear non-staining, aluminium machining, aluminium sawing, micro-lubrication, aluminium cutting oil, aluminium boring oil, aluminium tapping oil, forming evanescent additive, evaporable lubricant additive, cutting oil manufacturers, cutting oil suppliers. Manufacturers of machining fluids. Suppliers of machining fluids. Manufacturers of industrial lubricants, suppliers of industrial lubricants, suppliers of cutting fluids. Aluminium cutting fluid. Lubricant for micro-lubrication.
